4 axis CNC machining/ CNC lathe machining Optical parts machining Industrial lens

Online Inquiry

Product Description

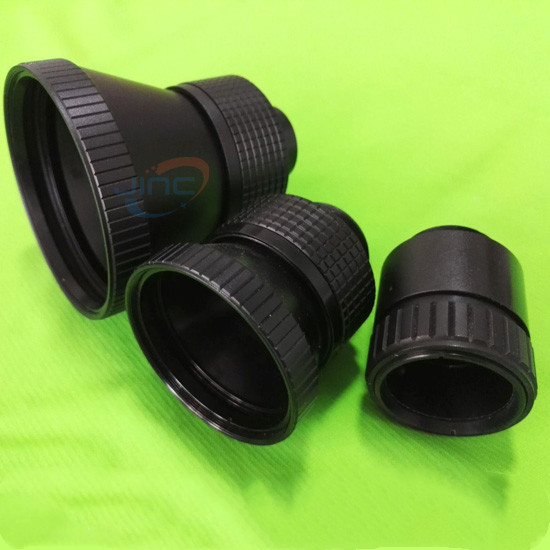

Precision Four-axis CNC machining/ CNC lathe machining Optical parts machining Industrial lens

Optical lens is an indispensable component in machine vision system, which directly affects the quality of imaging and the realization and effect of algorithm. Optical lenses can be divided into short-focus lenses, medium-focus lenses, and telephoto lenses from the focal length; wide-angle, standard, and telephoto lenses from the field of view; Automatic aperture fixed focus lens, manual zoom lens, automatic zoom lens, automatic aperture electric zoom lens, electric three variable (aperture, focal length, focus are all variable) lens, etc.

For cameras, the quality of the lens has always been a key factor affecting the image quality, and digital cameras are of course no exception. Although the CCD resolution of the digital camera is limited, in principle, the optical resolution of the lens is required to be lower; on the other hand, due to the small imaging area of the digital camera (because the digital camera is imaged on the CCD, and the area of the CCD is smaller than that of the CCD) The film of the traditional 35mm camera is much smaller), so the lens needs to ensure a certain image quality. For example, for a certain subject, 200 pixels are required in the horizontal direction to perfectly reproduce its details. If the imaging width is 10mm, a lens with an optical resolution of 20 lines/mm can do the job. If the imaging width is 1mm, the optical resolution of the lens must be above 200 lines/mm. On the other hand, traditional film is more sensitive to ultraviolet rays, and UV mirrors are often required for external shooting, while CCDs are more sensitive to infrared rays. Adding special coatings or external filters to the lens will greatly improve the image quality. The physical aperture of the lens must also be considered, and regardless of its relative aperture, the larger the physical aperture, the greater the luminous flux, the better the digital camera's ability to accept and control light, and the better the image quality.

Items	Description

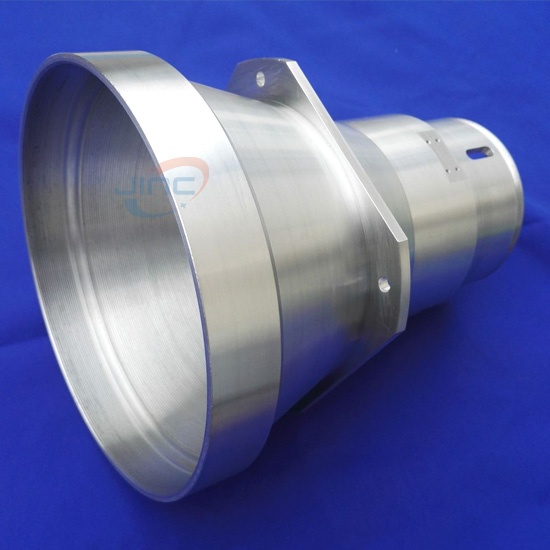

Material	AL6061/AL7075

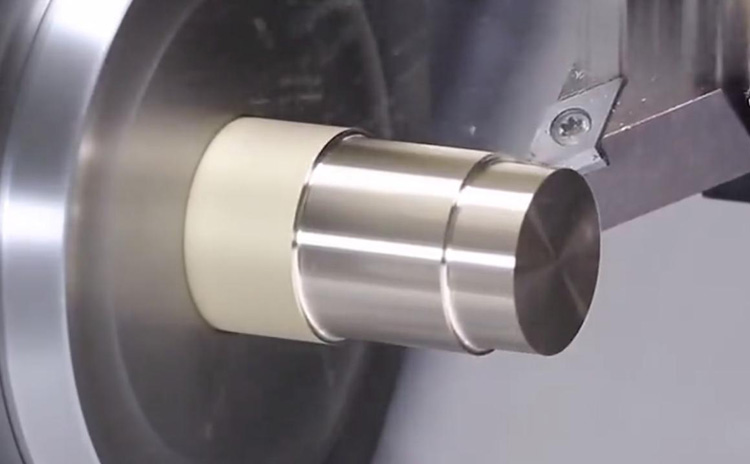

Manufacture Method	CNC turning,tapping thread
Surface finish	sandblasting and anodized black
Drawing format	3D STEP/X_T/IGES,2D PDF/DWG
MOQ	1
Tolerance	ISO 2768-1 mK,for special holes:+/-0.01mm
Delivery time	Samples:a week More than 20pcs:2weeks 300pcs:20 working days
Delivery Method	DHL/FedEx/UPS,lead time:3~4 working days
Payment Term	50% payment in advance,the rest payment before shipping

Capacity

Items	Size Max.	Tolerance
CNC Milling machines	510 * 1020 * 500mm	±0.01mm
CNC Turning machines	ø0.5~ø350mm length:1000mm	±0.005mm

Material available

Aluminum	AL6061, AL6063, AL6082, AL7075, AL5052, AL1060,AL2024,A380 etc.
Stainless Steel	SS201,SS301, SS303, SS304, SS316,SS430 etc.
Steel	SPCC Cold Rolled Steel,mild steel, Carbon steel, 4140, 4340, Q235(A3), Q345B, 20#, 45#,40Cr,65M..etc.
Titanium alloy	TA1、TA2、TA3、TA4、TA5、TC4、TC6、TC11,pure titanium
Brass	HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
Copper	T2,T3,(110 1/2 hard) C11000,C12000,C12000 C36000 etc
Bronze	phosphor bronze,aluminium bronze,tin bronze,silicon bronze,beryllium bronze
Plastic	ABS,PC,PA,PP,PMMA,POM,PA+GF30,PPA+GF30,PPA,PEEK,PEI,bakelite...etc.
Invar	Invar36, 1.3912
Iron	12L14,1213,1215 ...etc

Surface Finish

Aluminum	Stainless Steel	Steel	Titanium alloy	Brass	Copper	Bronze	Plastic
Sandblasting	Polishing	Polished,Brushing,Sandblasting	Sandblasting	Sandblasting	Sandblasting	Sandblasting	Sandblasting
Brushing	Passivating	Zinc plating	Brushing	Brushing	Brushing	Brushing	Brushing
Polishing	Sandblasting	Blacking(black coating)	Polishing	Polishing	Polishing	Polishing	Polishing
Normal Anodized(3~15μm) Red,Blue,Yellow,Pink,Purple,others color per Pantone color you want anodizing Clear/black anodize per MIL-A-8625 TYPE I,Class 1	PVD coating	Nitriding	Anodizing	Nickel plating	Nickel plating	Nickel plating	Painting
Hard Anodized(15~30μm) Clear/black anodize per MIL-A-8625 TYPE II,Class 1	Painting	Nickel/Tin plating	Nickel plating	Tin plating	Tin plating	Tin plating	Silkscreem painting
Hard Anodized(30~55μm) Clear/black anodize per MIL-A-8625 TYPE III,Class 1	laser engraving logo/letters	Chrome plating	electroless plating	laser engraving logo/letters	laser engraving logo/letters	laser engraving logo/letters	laser engraving logo/letters
Chemical Film		Heat treatment	PVD coating
Chrome plating		Powder Coating	Painting
PVD Coating		Painting
Painting		laser engraving logo/letters
laser engraving logo/letters
